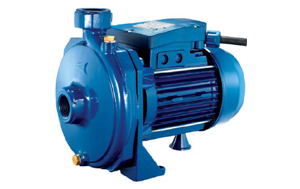

CM – Series
| Uses: |
|
Boosting of pressure for Lodges, townhouse complexes, commercial parks, etc. |
| Flow Rates: |
|
20 to 300L/min |
| Lifting Range: |
|
2 to 5.6Bar |
| Voltage Options: |
|
230V and 380V |
| Material: |
|
Cast iron pump and noryl or brass impellers |
| No of Sprayers: |
|
20 impact or 35 static cone sprayers |
| Power rating: |
|
1.10Kw to 4.0Kw |
| Extras: |
|
Fitted with auto starting devices or VDs |
|
 |
CH – Series
| Uses: |
|
Boosting of pressure for Lodges, townhouse complexes, commercial parks, etc. |
| Flow Rates: |
|
50 to 600L/min |
| Lifting Range: |
|
2 to 5.6Bar |
| Voltage Options: |
|
230V to 380V |
| Material: |
|
Cast iron pump and brass impellers |
| No of Sprayers: |
|
28 impact to 45 static cone sprayers |
| Power rating: |
|
1.10Kw to 4.0Kw |
| Extras: |
|
Fitted with auto starting devices or VSDs |
|
 |

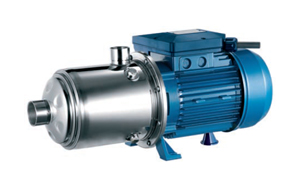

Ultra S – Series
| Uses: |
|
Boosting of pressure for Lodges, townhouse complexes, commercial parks, etc. |
| Flow Rates: |
|
20 to 320L/min |
| Lifting Range: |
|
3.2 to 8.0Bar |
| Voltage Options: |
|
230V and 380V |
| Material: |
|
Full 304 SS pump and impellers |
| No of Sprayers: |
|
22 impact or 38 static cone sprayers |
| Power Rating: |
|
0.37Kw to 3.0Kw |
| Extras: |
|
Fitted with auto starting devices or VSDs |
|
 |

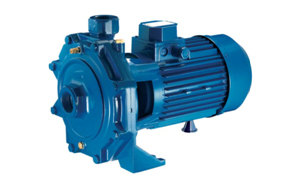

CB – Series
| Uses: |
|
Boosting of pressure for Lodges, townhouse complexes, commercial parks etc. |
| Flow Rates: |
|
30 to 500L/min |
| Lifting Range: |
|
3.2 to 9.0Bar |
| Voltage Options: |
|
230V and 380V |
| Material: |
|
Cast iron pump and brass impellers |
| No of Sprayers: |
|
22 impact or 38 static cone sprayers |
| Power Rating: |
|
1.10Kw to 11.0Kw |
| Extras: |
|
Fitted with auto starting devices or VSDs |
|
 |
Flanged – Series
| Uses: |
|
Boosting of pressure for Lodges, townhouse complexes, commercial parks, etc. |
| Flow Rates: |
|
5 to 200m3/h |
| Lifting Range: |
|
1.5 to 8.5Bar |
| Voltage Options: |
|
230V and 380V or 525V |
| Material: |
|
Cast iron pump and impellers |
| No of Sprayers: |
|
1 to 25 industrial heads or 250 static cone sprayers |
| Power rating: |
|
0.37Kw to 37Kw |
| Extras: |
|
Fitted with auto starting devices or VSDs |
|
|
CR – Series
| Flow Rates: |
|
1 to 150m3/h |
| Lifting Range: |
|
1.2 to 24Bar |
| Voltage Options: |
|
230V and 380V or 525V |
| Material: |
|
Cast iron pump and 304/316 SS impellers |
| No of Sprayers: |
|
1 to 19 industrial heads or 238 static cone sprayers |
| Power rating: |
|
0.37Kw to 75Kw |
| Extras: |
|
Fitted with auto starting devices or VSDs |
|
|

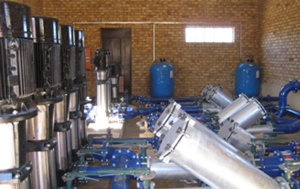

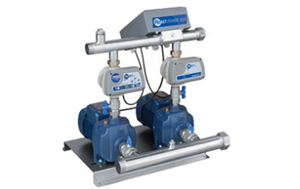

Irrigations Booster Sets
All the Industrial Irrigation booster pumps in our range can be configured as either stand-alone pump systems that are assembled with any device to either do a simple pressure start-up, or be controlled by a VSD unit to maximise power consumption and produce a pre-determined constant system pressure. Or, the pumps can also be built as multiple pump sets ranging from common twin build-ups to the more complex 8 unit sets, depending on the application variations that exist is common large scale irrigation systems. Mostly these booster sets are built with jockey and 1st slave VSDs.
